SSL750LH Skid Steer Loader
SSL750LH skid steer loader Overview
With its low height of 1575mm and a loading capacity of 860KG,Baoomax SSL750LH skid steer loader is specifically designed to work in low-height areas.Whether you’re operating indoors, shipyard ,in tight spaces, or beneath low ceilings, this skid steer loader offers unmatched maneuverability and accessibility. Its compact size and low height enable seamless navigation through narrow aisles, tight corners, and congested areas. Maneuver with confidence and precision, even in the most challenging environments, as this skid steer loader empowers you to optimize your productivity in limited spaces.
High Loading Capacity
860kg Loading Capacity: Provides enough lifting power for heavy-duty tasks in construction, landscaping, and agricultural settings.
Low Machine Height
1585mm Height: Compact design allows for easy access and operation in low-clearance areas such as underground garages, tunnels, shipyard and interior spaces.
Enhanced Maneuverability
Compact Size: Facilitates navigation in confined spaces, making it ideal for urban projects and indoor work environments.
Zero-Turn Capability: Enables precise movements and efficient operation, improving job site productivity.
Products Categories
Get A Free Quote
SSL750LH Skid steer Description
Whether you need to load, excavate, grade, or perform other tasks, this new cheap skid steer loader is up to the challenge. The hitch plate size are same with Bobcat skid steer loader,Cat skid steer , kubota skid steer ect , With its interchangeable attachments, such as 4 in 1 buckets, forks, auger , trencher, grapple , backhoe , brush cutter ,snow blower,sweeper and more, you can easily customize the loader to suit your specific requirements, maximizing its utility and efficiency.
SSL750LH skid steer loader Main features:
- Engine :45KW XINCHAI diesel engine
- Loading capacity: 860KG
- Machine width:1800mm
- Bucket capacity:0.47CBM
- Machine weight:2850KG

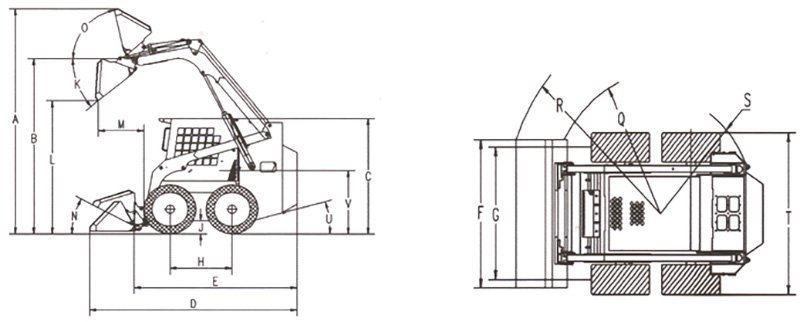

SSL750LH Skid Steer Data Sheet
| Model | SSL750LH |
| Rated capacity | 860KG |
| Engine model | Xinchai A498BPG |
| Bore×stroke | 98×105 mm |
| Rated power | 45 kw |
| Rotating speed | 2500 rpm |
| Number of cylinders | 4 |
| Max. Torque | 193 n.m |
| Displacement | 3.168 L |
| Max. Speed | 11.2 km |
| Vacuum tire | 10-16.5 |
| Operating load | 860 kg |
| Max. Loading | 1720 kg |
| Lifting | Radial |
| Bucket lifting force | 1800 kg |
| Arm lifting force | 1500 kg |
| Total cycling time | 10.2 s |
| Bucket capacity | 0.44 m³ |
| Pressure of working system | 180 bar |
| Rated flux | 75 L/min |
| High flow flux(optional) | — |
| Fuel tank capacity | 75L |
| Self-weight with bucket | 2900 kg |
| Overall operating height | 3601 mm |
| Height to bucket hinge pin | 2747 mm |
| Height to top of cab | 1575 mm |
| Height to bottom of level bucket | 2560mm |
| Overall length without bucket | 2610 mm |
| Overall length with bucket | 3390 mm |
| Dumping angle at maximum height | 40° |
| Dumping height | 2068 mm |
| Dumping reach | 405 mm |
| Rollback of bucket on ground | 31° |
| Rollback of bucket at full height | 98° |
| Wheelbase | 1195 mm |
| Ground clearance | 188 mm |
| Angle of departure | 26° |
| Turning radius front without bucket | 1262 mm |
| Front turning radius | 2058 mm |
| Rear turning radius | 1588 mm |
| Rear axle to bumper | 919 mm |
| Tread width, centerline to centerline | 1641 mm |
| Width between outside of two wheels | 1926 mm |
| Bucket width | 1966 mm |
SSL750LH Skid Steer loader application
SSL750LH Skid steer loaders are incredibly versatile machines that are indispensable across various industries. With compact size, powerful performance, and use multiple attachments make SSL750LH ideal for numerous applications.
1. Construction
SSL750LH Skid steer loader can be fitted with buckets, augers to handle excavation tasks.
Install grading attachments, SSL750LH skid steers are perfect for leveling surfaces
Use skidloader forks and grapple attachments to move and transport building materials such as bricks, logs, and pallets.
2. Landscaping
SSL750LH Skid steers with tiller attachments can break up soil and prepare it for planting. Also Easily move and distribute mulch, gravel, and other landscaping materials with bucket attachments.
Planting and Tree Removal: Auger attachments allow for efficient planting of trees and shrubs, while stump grinders can remove tree stumps.
3. Snow Removal
Skid steer loaders equipped with snow plow or snow blower attachments can clear snow from driveways, sidewalks, and parking lots.
4. Road Maintenance
Pothole Repair: Skid steers can be used to fill and compact potholes
Asphalt Milling: Milling attachments allow for the removal of old asphalt surfaces before repaving.
SSL750 LH Low height Skid Steer Loader Video
SSL750LH Skidsteer Loader Detail Display

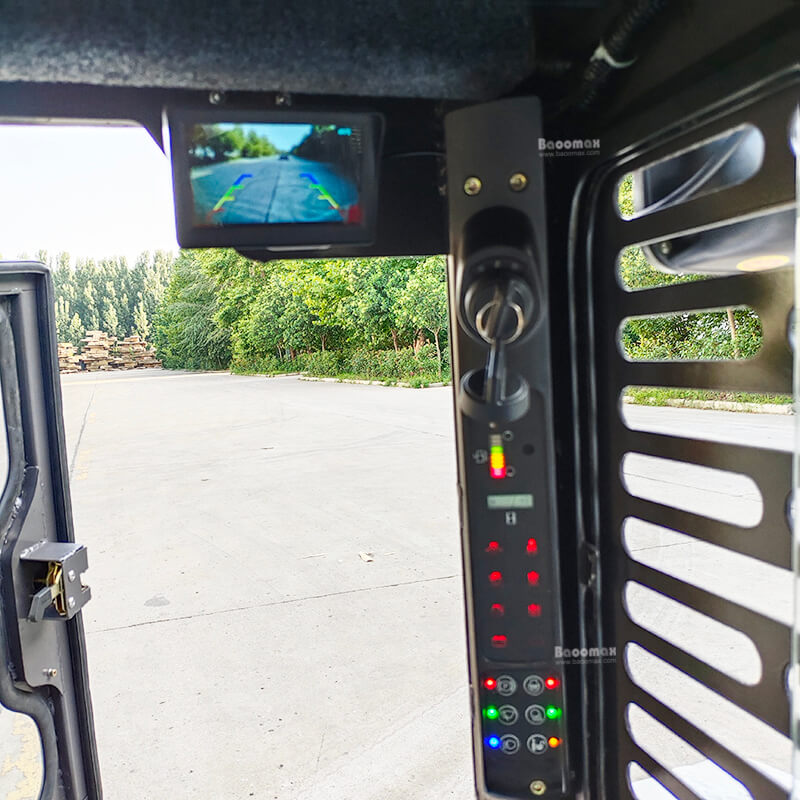

SSL750LH skidsteer loader instrument pannel
SSL750LH skidsteer loader cabin inside
SSL750LH skidsteer loader low height

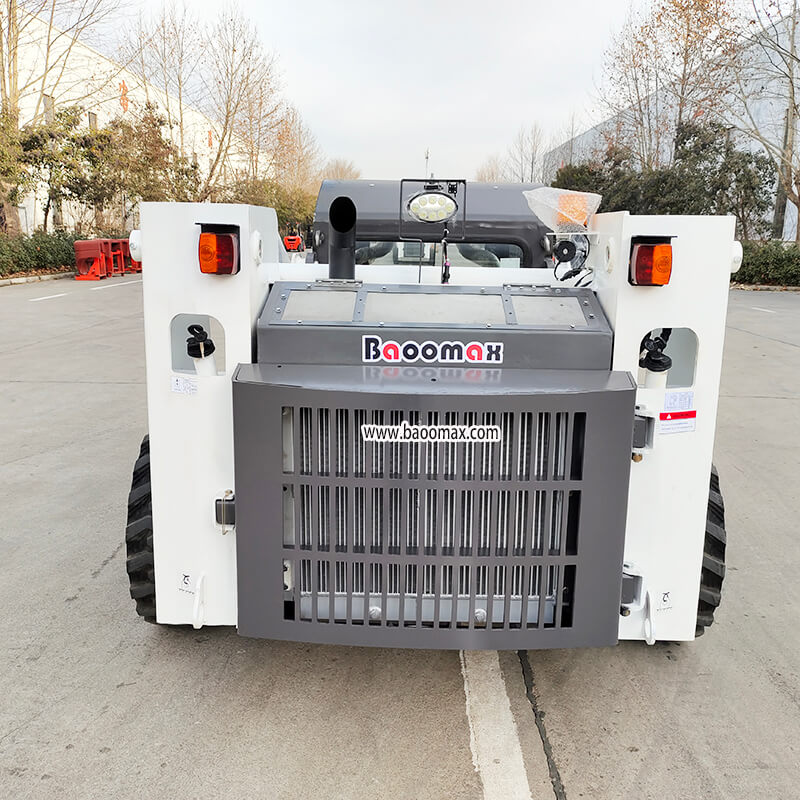

SSL750LH skidsteer loader rear side

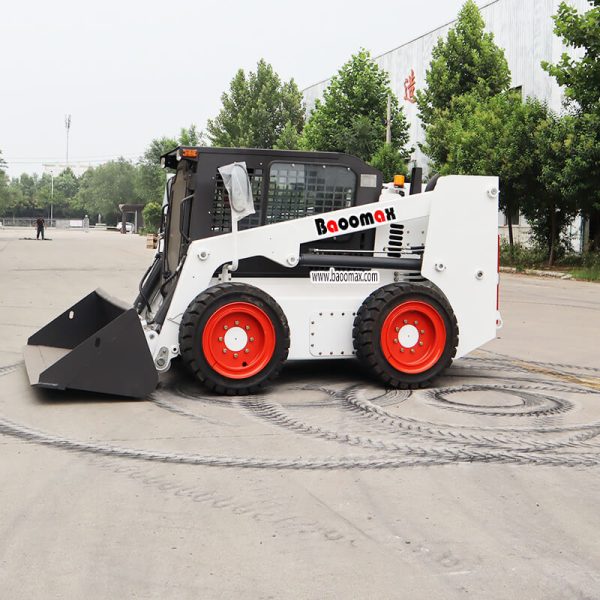

SSL750LH skidsteer loader right side
