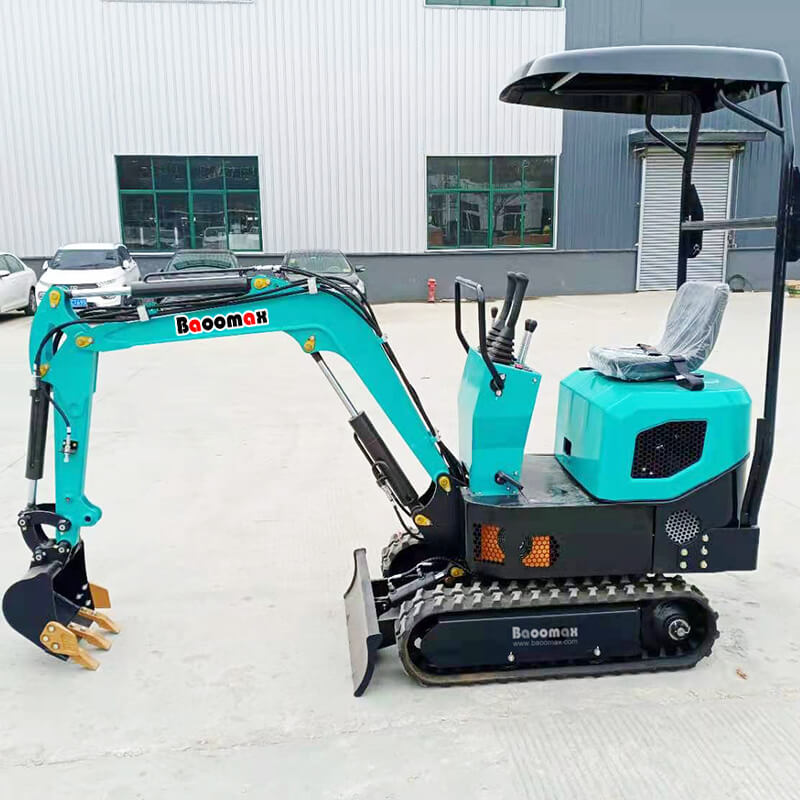

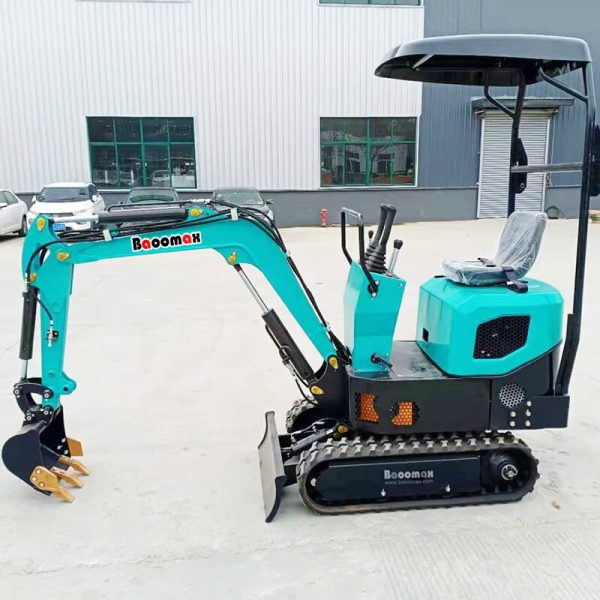

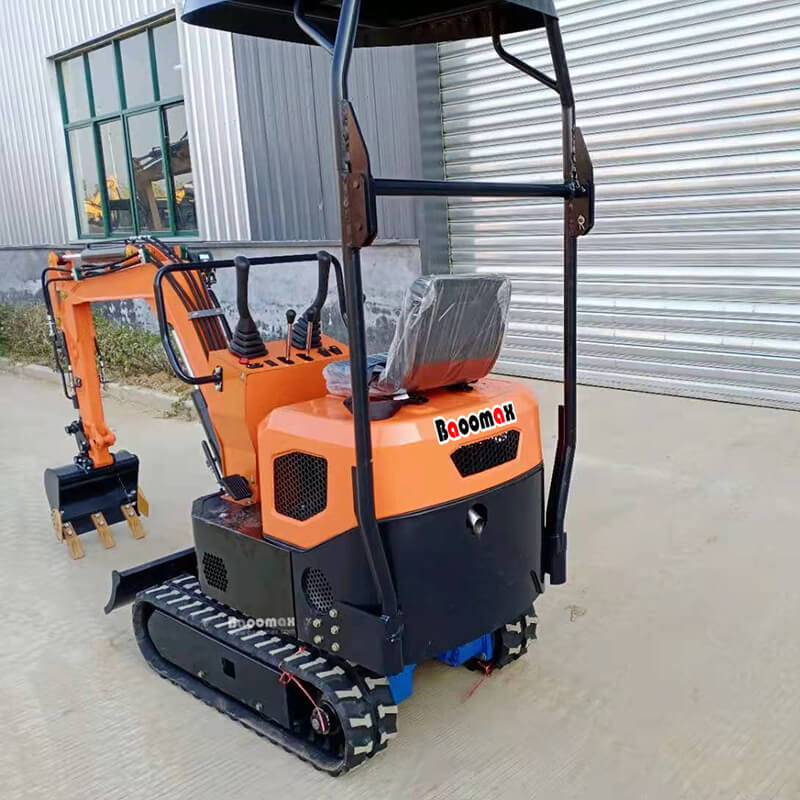

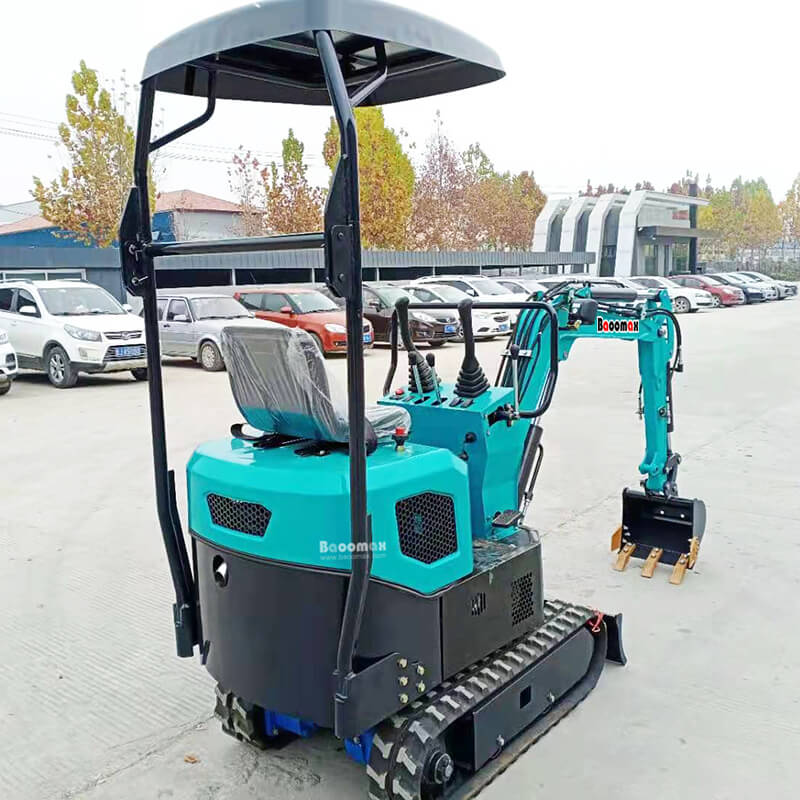

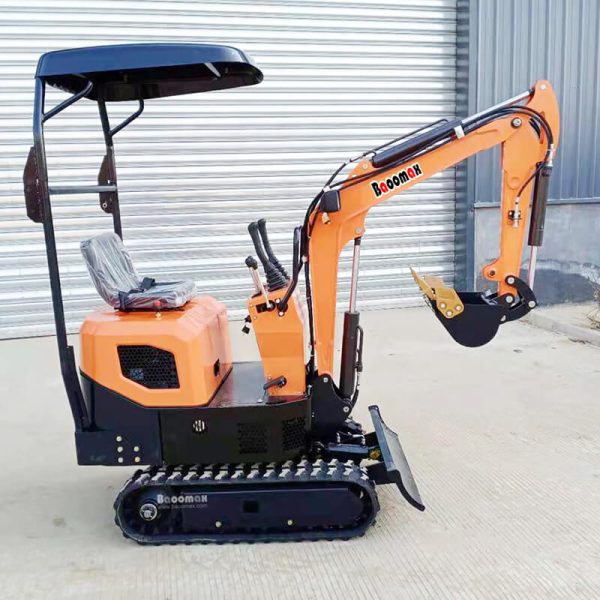

Don’t let its mini size fool you—Baoomax micro mini Crawler Excavator packs a punch when it comes to power and performance. Equipped with a high-performance hydraulic system and a range of attachments, this compact excavator can effortlessly dig, lift, and move large quantities of soil, rocks, and debris. Its efficient digging capabilities enable precise excavation, grading, and trenching, ensuring optimal results in various construction applications.
Its compact size, power, and versatility enable it to excel in challenging environments, making it an ideal choice for urban construction, landscaping, and renovation projects.

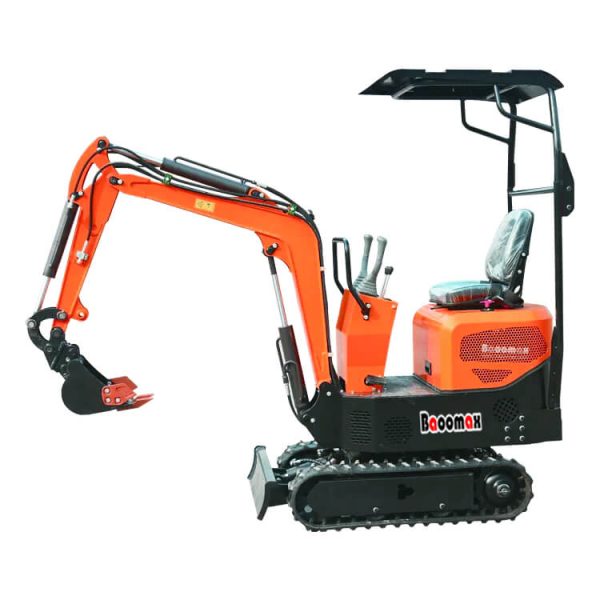

ME10 Mini Excavator specification
| Engine Model | KOOP( KD192F-1) |
| Type | Direct injection, air cooled, natural intake |
| No.engine cylinder | 1 |
| Bore and stroke | 92×75 |
| Displacement | 0.499 |
| Power output | 7kw/3000rpm |
| Max. torque | 27N.m/2200rpm |
| Travel motors | BMT-310 |
| Support roller quantities | 2×2 |
| Travel speed | 2(km/h) |
| Drawbar pulling force | 8.3KN |
| Grade ability | 58%(300) |
| Rubber track width | 180mm |
| Rubber track Thickness | 40mm |
| Pump | CBT-F306R6H1R |
| Type | Gear pump |
| Max. discharge flow | 18 (L/min) |
| Main control valves | DL80 |
| Oil cooler | Air cooled type |
| Swing motor | BMR200 |
| Swing motor type | Gerotor motor |
| Swing speed | 13 r/min |
| Fuel tank | 7L |
| Engine oil | 1.2L |
| Hydraulic oil tank | 14.5L Oil Tank Level |
| 21.5L Hydraulic System | |
| Bucket capacity | 0.023m3 |
| Bucket width | 400 mm |
| Max. digging height A | 2600mm |
| Max. dumping height B | 1830mm |
| Max. digging depth C | 1715mm |
| Max. vertical digging depthD | 1590mm |
| Max. digging radius E | 3065mm |
| Max. digging radius at ground level F | 2960mm |
| Min swing radius of work equipment G | 1480mm |
| Swing radius at tail H | 800mm |
| Overall length A | 2840mm |
| Ground contact length(Transportation) B | 2611mm |
| Overall height(to top of boom) C | 1130mm |
| Overall width D | 880mm |
| Overall height(to top of cab) E | 2220mm |
| Counterweight ground clearance F | 385mm |
| Min. Ground clearance G | 132mm |
| Track grounding length I | 900mm |
| Track length J | 1233mm |
| Track gaugeK | 660mm |
| Track width L | 840mm |
| Track Shoe width M | 180mm |
| Counterweight height N | 1025mm |
| Operating weight | 1000kg |
| Ground pressure | 20 KPa |
| Hydraulic system pressure | 16Mpa |
